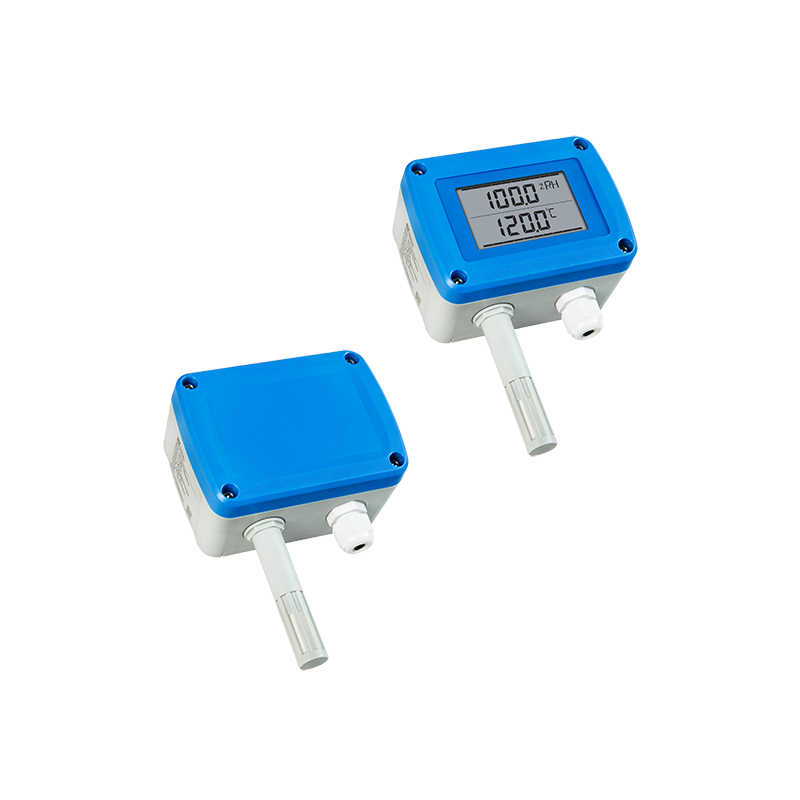

MHP智能型温湿度变送器 MHP Intelligent Temperature and humidity transmitter

IP67, isolated analog output of temperature and humidity, display optional

MHP series temperature and humidity transmitter is designed for temperature and humidity measurement under harsh conditions. The transmitter can perform accurate measurement of relative humidity and temperature. Moreover, it can complete calculation of some other related humidity parameters, such as output dew point, absolute humidity, mixing ratio, etc., and perform well in anti-thunder (resistance to surge), resistance to burst, electromagnetic isolation and other EMC security functions.

MHP series temperature and humidity transmitter of wall-mounted type, air duct-mounted type and split probe type is available. The transmitter casing is well designed to facilitate reduction in installation cost, and provide a high level of protection up to IP67 to deal with potential contamination and condensation under operating conditions.

It provides two-channel analog output for parameter measurements or calculations, with output signal being either current signal (two-channel output to be isolated each other at the current output state) or voltage signal. With adequate display modules, the instrument can provide simultaneous indication of two measurement parameters in its casing’s display window.

Applications:

Process detection and control

Industrial drying and humidifier

Utility tunnel monitoring

Food and medicine

Meteorology and environmental cabinet

Clean room, culture room, incubation room

Store room, cooling room

Electronics factory

Agriculture

Greenhouse

Indoor pool

HVAC system, building control

Features

Resistance to thunder and surge

Burst resistance

Isolation across two-channel current analog output
